The NDP Series are powerful DSP based digital audio processors, ideally suited for install applications, where they combine the functions of a multitude of conventional products in a compact 1U unit with extensive remote control capabilities.

Superb audio quality – The high sampling rate of 192kHz means minimal filtering providing exceptional sonic purity with a bandwidth in excess of 32kHz.
There also offer a “signal source” parameter, which allows completely flexible routing of any output from any combination of inputs.

Each input has a gain control, 1500 millisecond delay, 31 band graphic equalizer, 15 band multi-type filter. The multi-type filter bands have a large selection of different filter types available, including parametric equalizer, high/low shelving 6/12/Q, highpass/lowpass with variable-Q , notch, all-pass 90/180, band-pass.

Each output has a gain control, 1500 millisecond delay, 15 band multi-type filter. The multi-type filter bands have a large selection of different filter types available, including parametric equalizer, high/low shelving 6/12/Q, highpass/lowpass with variable-Q , notch, all-pass 90/180, band-pass. The independent highpass and lowpass filters offer slopes of up to 48dB/Octave. polarity switching and, additionally, a fully featured limiter.

Channel link control available.
Security lock-out is available for all controls.
Extend simple remote protocol available.

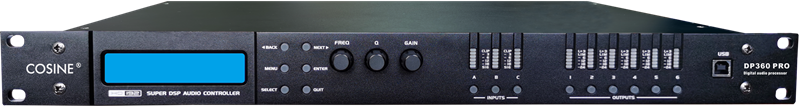

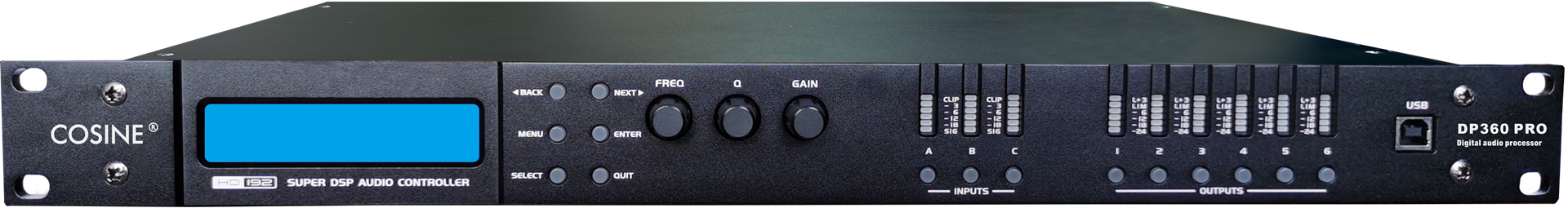

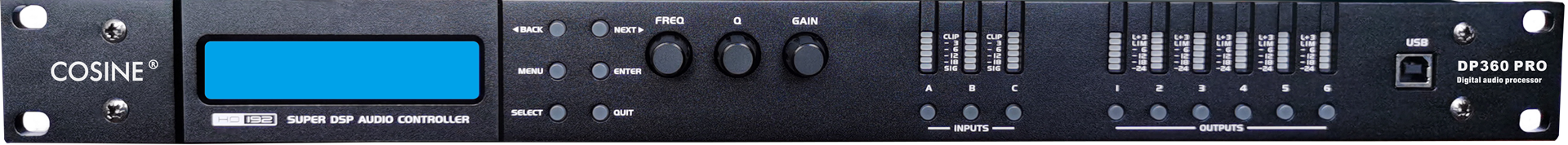

Three parameter encoders provide a familiar and intuitive control with all information displayed simultaneously on LCD screen. Full metering is provided for inputs and outputs, with mute/edit buttons allowing quick set up and adjustment. The processor is provided with PC remote control software for full system set up and management. Just complete your system set up in a real time basis and save your configuration in the processor via the RS232/RS485 wire.
